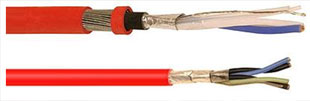

Thermocouple Compensating Cables

The compensating cables are suitable for inter connections between the thermocouple and display, control or recording instruments. Voltage is generated when there is a temperature change at the junction of two conductors. The voltage is transmitted to acalibrated meter which monitors the temperature changes. The construction is similar to paired instrumentation cable but the conductor is material is different. Thermocouples are used in process to sense temperature and are connected to pyrometers for indication and control. We are renowned a Thermocouple Compensating Cables supplier and dealer in Delhi.

The Thermocouple and Pyrometers are electrically connected by thermocouple extension/compensating cables. The conductors used for this cables are required to have similar thermo electric (EMF) properties as that of thermocouple use for sensing temperature.The cables are manufactured as perIS:8784, ANSI-MC 96.1, B.S.,ENI, DIN and customers specifications.With our best quality and services we have emerged as reputed Thermocouple Compensating Cables supplier in delhi, Chandni Chowk

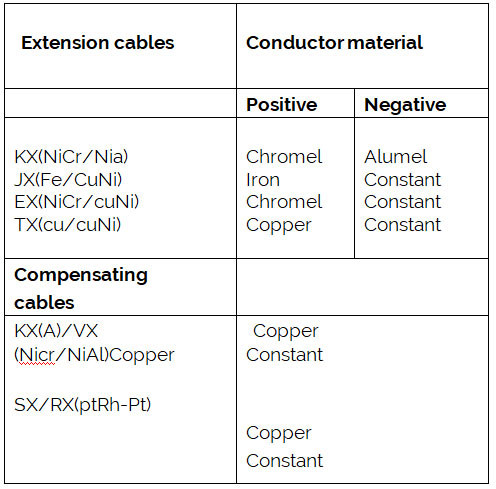

Construction Conductor

Insulation	PVC/HR PVC/FRLS as per requirement. Construction Two such cores twistedt of or map air. Identification Cores by number printing/colour coded
Screening	Individual Screening/Over all Screening as per requirement.
Inner Sheath	PVC/HR PVC/FRLS as per requirement
Armouring	Unarmoured/Armoured with Galvanized Steel Wire/Strip
Sheath	PVC,FR, FRLS As per Requirement

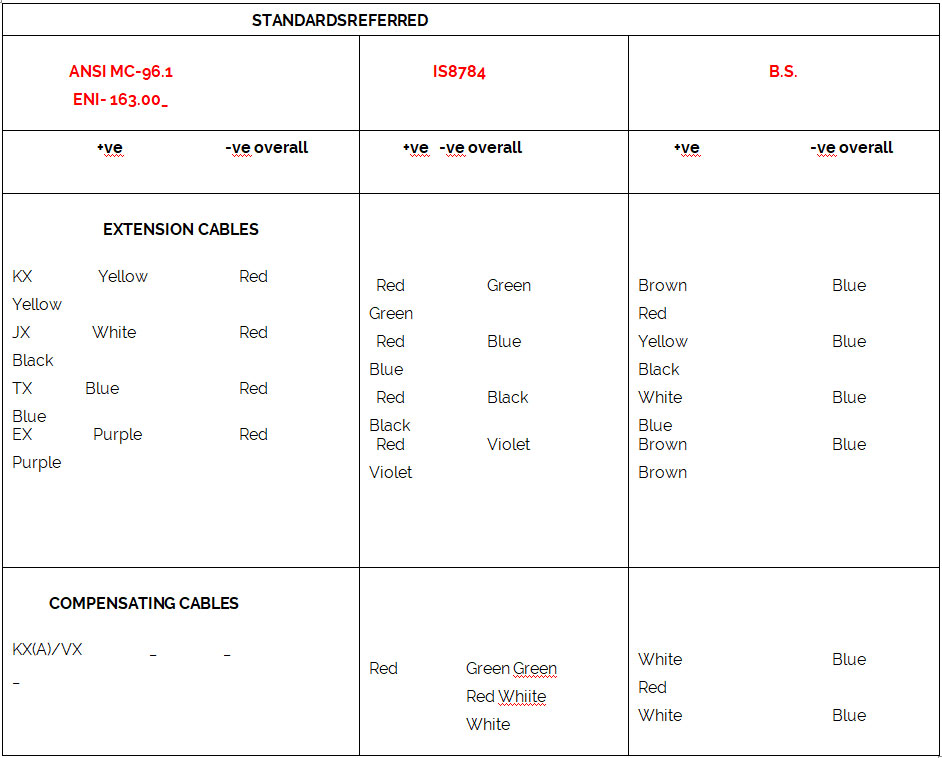

Colour Code
