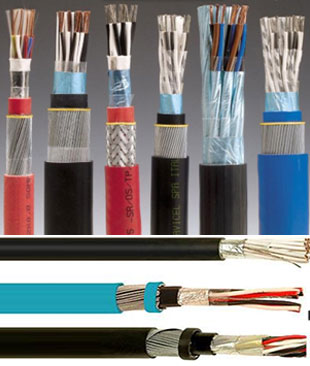

Over all Aluminium foil shielded Application, With our best quality and services we have emerged as reputed instrumentation Cable Dealer in Delhi, Chandni Chowk
Over all shielded cable constructions are recommended for use in Instrumentation computer and control application where signals are transmitted in excess of 100 Mili volts except in areas where high voltage and current sources create excessive noise interference. Aluminium-Mylar foil with Drain wire provide 100% coverage forshield effectiveness
Individual + Overall Shielding Application
Individual shielded Pairs/ Triad/ Quadsetc.are recommended for use in application where optimum noise rejection is necessary. Individual Pair/ Triad/ Quadshield are fully isolated from each other and contain a separate Drain Wire for grounding to provide maximum protection from cross talk and common mode interference. Cables with overall shield provide additional electrostatic noiseprotection.
| Cross Sectional Area | 0.5sq. mmto 2.5sq.mmof solid/stranded tinned/un-Tinned Copper Conductors. |
|---|---|
| Insulation | PVC/Polyethylene as per requirement. |
| Formation | PAIR/TRIAD/QUAD, Colour coded/Number printed |
| Screening/Shielding | Aluminium Polyester Screen Overall(collective screen) (OAS) With Drain Wire, Individual Screen (IS) With Drain Wire or both IS and OAS with ATC Drain Wire. (Wire Braiding canalsobeprovided asper the requirement of customer.). |
| Armouring | Unarmoured/Armoured with Galvanised Steel Wire /Strip |
| Sheath | PVC,FR, FRLS as per Requirement |
| Applicable Standard | BS5308Part (I & II)&IS1554 -I |
| Colour codes Specification | IEC:189 |
